JCR

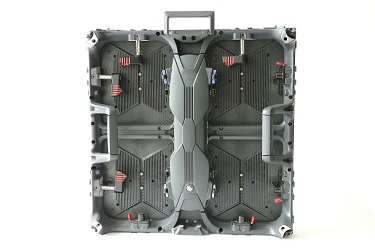

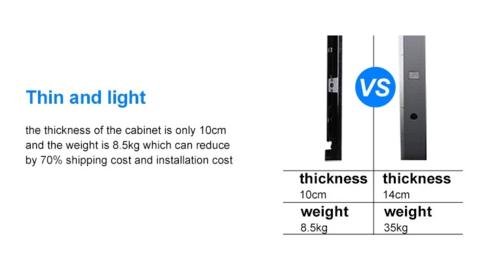

Light weight and ultrathin body.

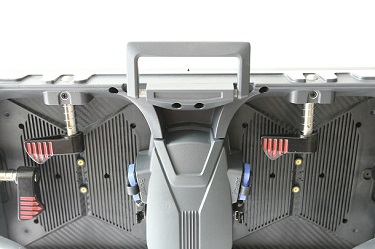

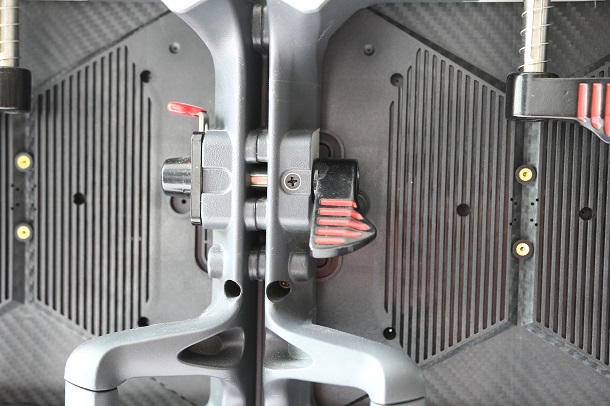

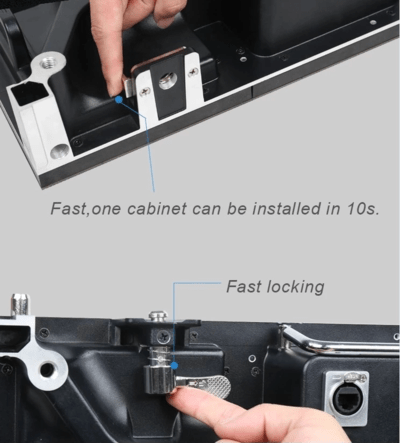

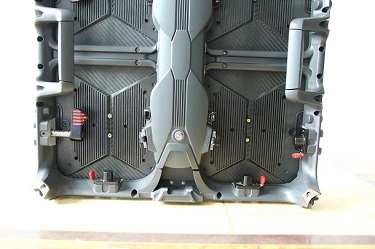

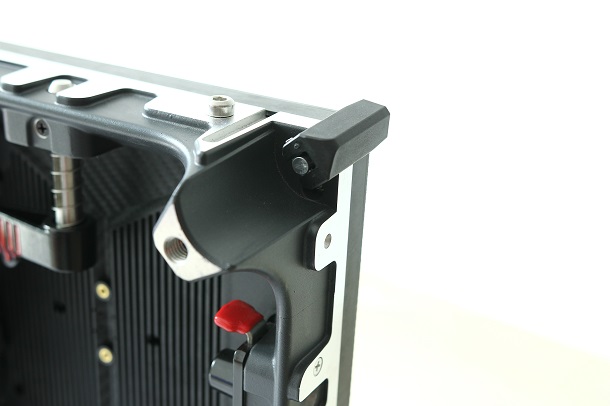

Tool-free assembly and disassembly.

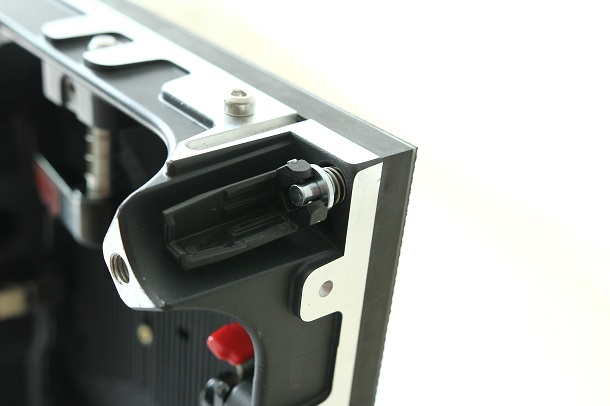

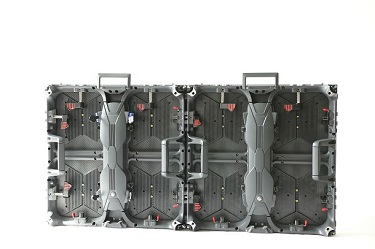

Seamless installation, error<0.1mm.

Good heat dissipation, without flat cable design.

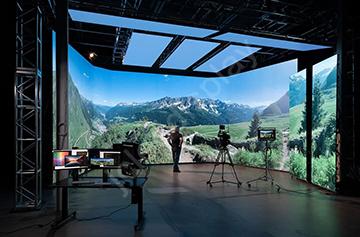

Curve or round shape it’s a option

Offline Message
Specifications
                JC-Rental R-2.6in R-2.84in R-2.97in R-3.91in R-3.47 R-3.91 R-4.81
Pixel pitch(mm) 2.6 2.84 2.97 3.91 3.47 3.91 4.81
Pixel density(dot/m2) 1474561 123904 112896 65536 82944 65536 43264
LED configuration SMD 1515 SMD 1515 SMD 2121 SMD 2121 SMD 1921 SMD 1921 SMD 1921
Module dimension(W x H)mm 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250
Module resolution(W x H) 96 x 96 88 x 88 84 x 84 64 x 64 72 x 72 64 x 64 52 x 52
Scanning mode 1/24 1/24 1/21 1/16 1/18 1/16 1/16
Brightness(dot/m2) ≥800 ≥800 ≥800 ≥800 ≥5000 ≥4500 ≥4500
Gray scale(bit) 16 16 16 16 16 16 16
Refresh rate(Hz) ≥1,920 ≥1,920 ≥1,920 ≥1,920 ≥1,920 ≥1,920 ≥1,920
Cabinet dimension(W x H x D)mm 500 x 500 x 88 500 x 500 x 88 500 x 500 x 88 500 x 500 x 88 500 x 500 x 88 500 x 500 x 88 500 x 500 x 88
Weight(Kg/cabinet) 7.2 7.2 7.2 7.2 7.5 7.5 7.5
Max.consumption(W/m2) 550 460 480 400 600 600 580
Avg.consumption(W/m2) 200 160 170 150 200 200 180
Viewing angle 140°/140° 140°/140° 140°/140° 140°/140° 140°/140° 140°/140° 140°/140°
Viewing distance(m) 2m 2m 2m 3m 3m 3m 4m
Environment Indoor Indoor Indoor Indoor Outdoor Outdoor Outdoor
Operating use temperature(℃) -10℃~40℃
Storage use temperature(℃) -20℃~50℃
Input voltage(V) 100~240V
Input power frequency(Hz) 50Hz~60Hz
Интенсивность отказов <1/100,1000
Input signal  SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life time(hrs) 100000
IP level IP30 indoor
