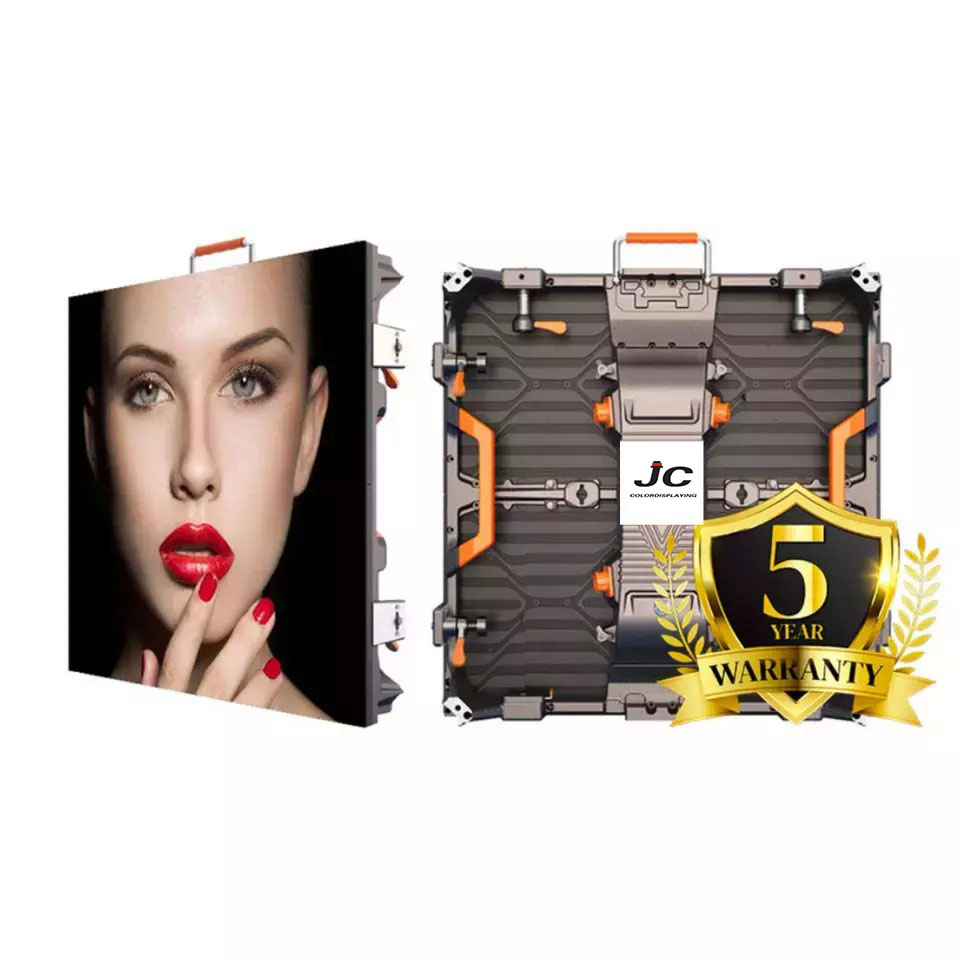

JC-P2.5 LED Display
P2.5mm indoor fixed LED screen is easy to operate and has powerful content management functions. In addition, various mature overseas projects have improved the overall performance of our P2.5 LED display, and more and more customers choose us as a long-term supplier and supplier of P2.5 indoor LED signs.
Offline Message

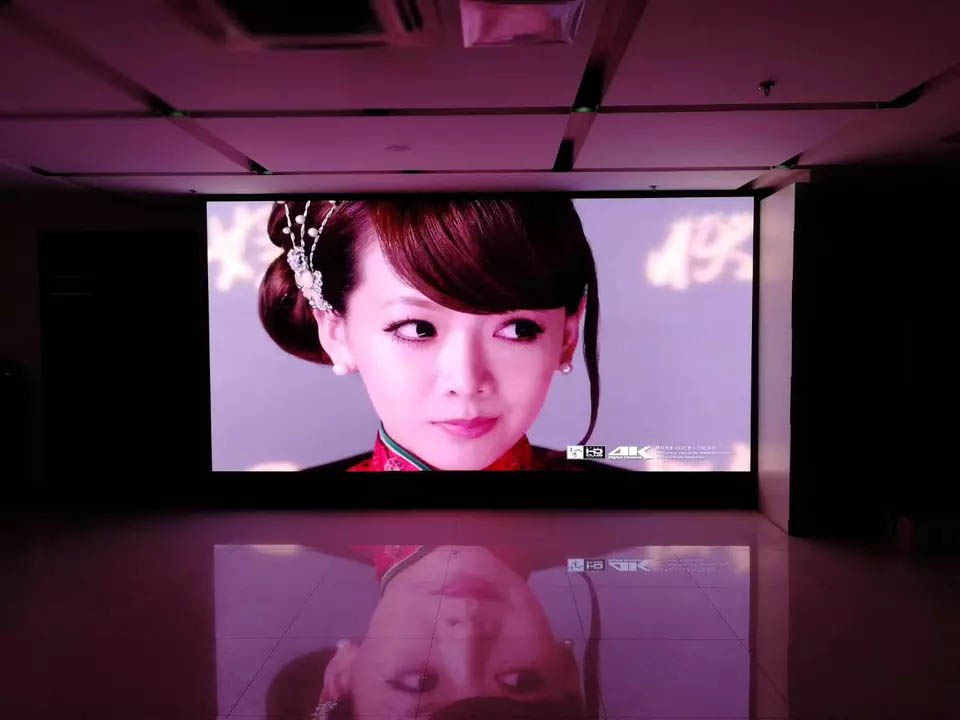

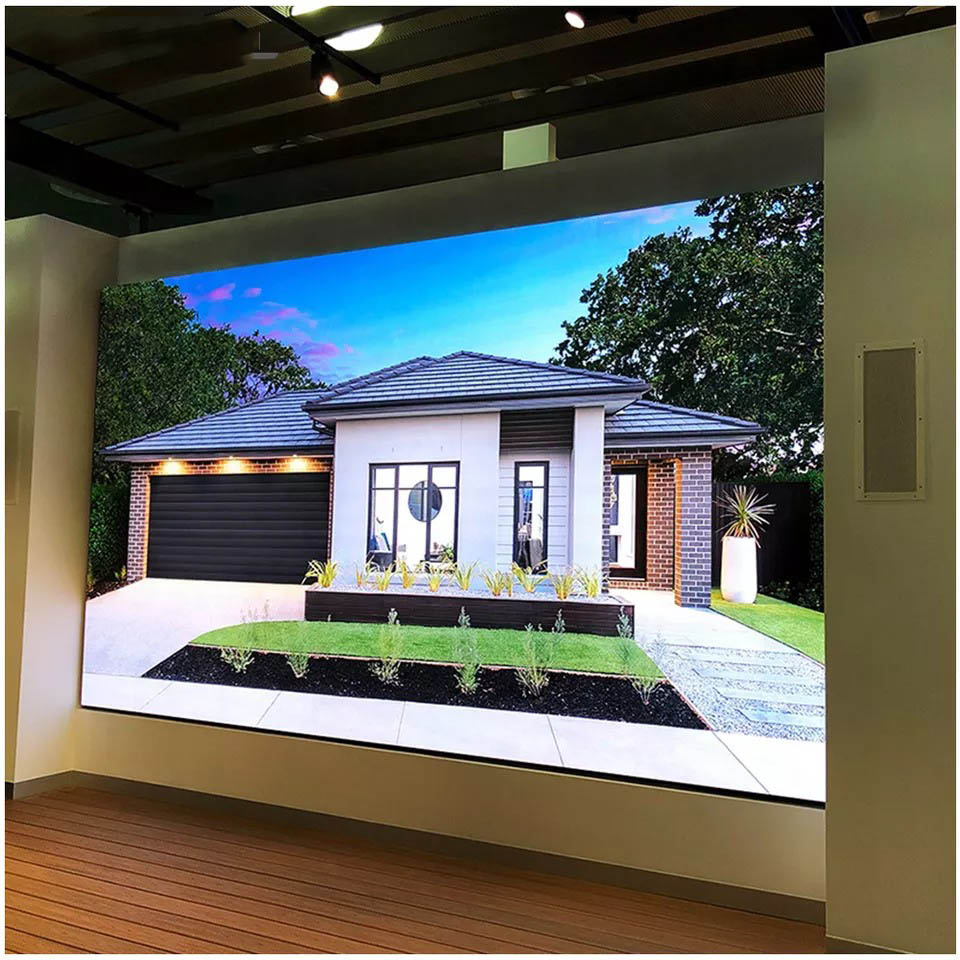

Small pixel P2.5mm indoor LED display is very popular now. Currently indoor fixed P2.5 LED display is the most common LED display with pixel pitch in the indoor fixed display market. Specifically designed for HD and high-contrast use where viewers display more vivid pictures and videos. If indoor applications require HD video standards, the P2.5 fixed LED display is the first choice. It is widely used in conference rooms, monitoring rooms, control rooms and other places that require high contrast and close-up viewing.
JCHD
JC-P2.5 LED Display
Pixel pitch(mm)
2.5
Pixel Density(dot/m2)
1600000
LED Type
SMD2121

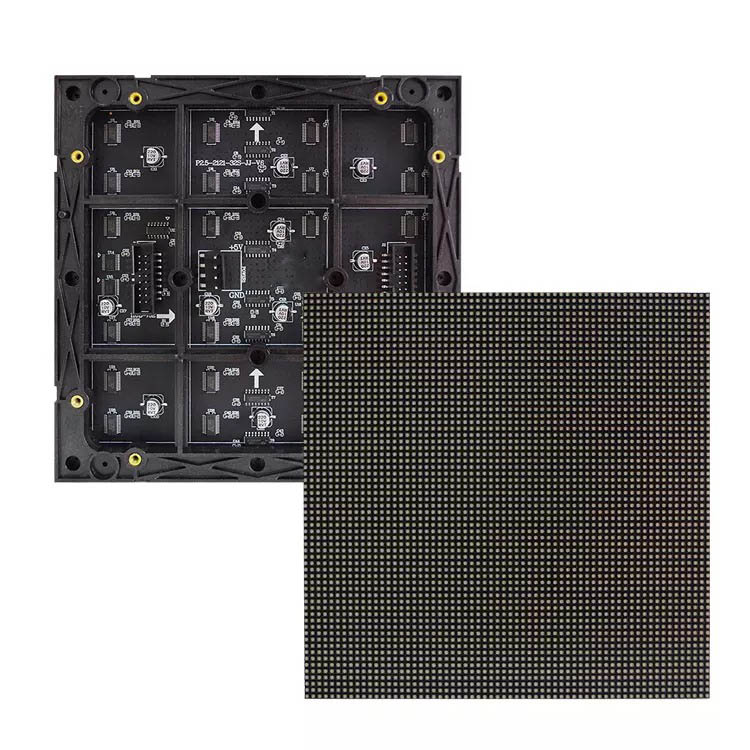

Module Size(W x H )mm
320 x 160
Module resolution(W x H)
640 x 480
Module Weight(Kg)
1.3
Power Consumption per Module(w)
50
Diver Mode(Scan)
1/32
Brightness(cd/m2)
≥800
Grey Scale(bits)
16
Refresh Rate(Hz)
≥3,840
Cabinet Size(W x H x D)mm
640 x 480 x 80
Cabinet Weight(Kg/Cabinet)
7.8
Max Power Consumption(W/m2)
605
Average Power Consumption(W/m2)
250
View Angle(H°/V°)
160°/160°
Mini View Distance(m)
2.5
Operating Use Temperature(℃)
-10℃~40℃
Storage Use Temperature(℃)
-20℃~50℃
Input Voltage(V)
100~240V
Input Power Frequency(Hz)
50Hz~60Hz
Failure Rate
＜1/100,1000
Signal Input Format
SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life Time(hrs)
100000
IP Level(front/rear)
IP31/IP31
