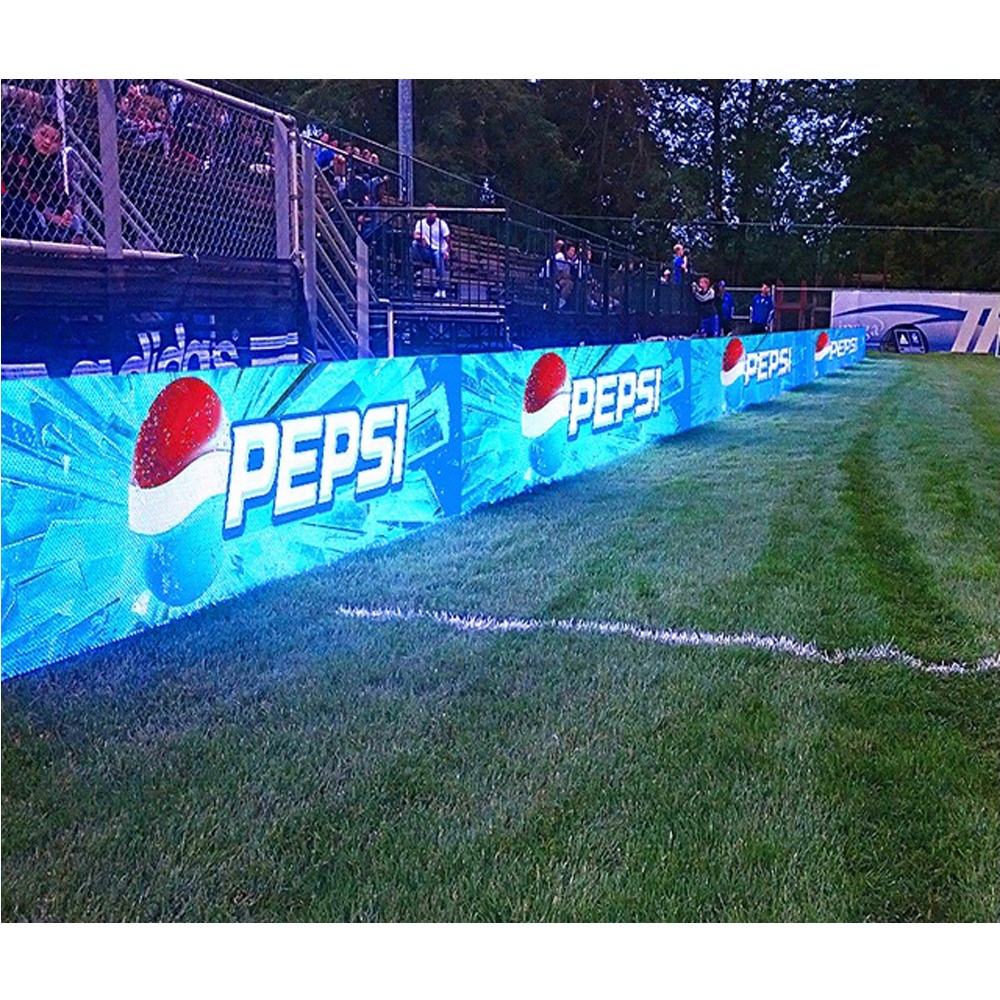

Outdoor perimeter display

JC Sports advantages

Wide viewing angel with 140/140 degree

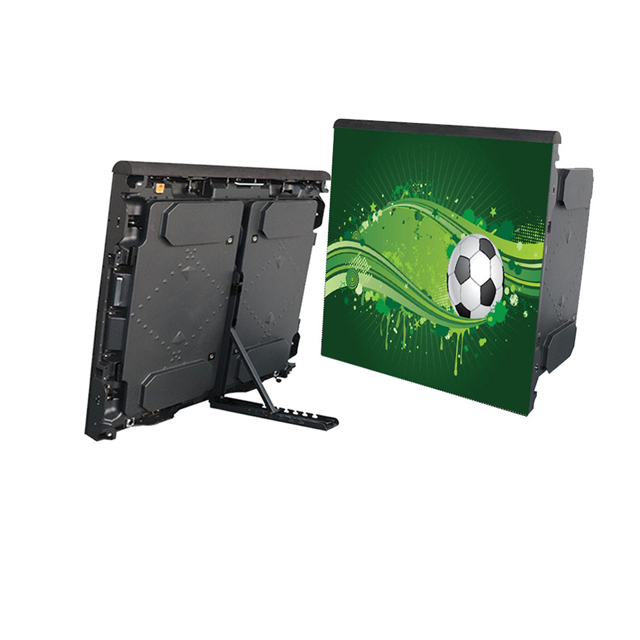

Tilfing mechanism with different angles improves the view from broadcasting camera;

Signal and power backup avoid any image loss during living playing;

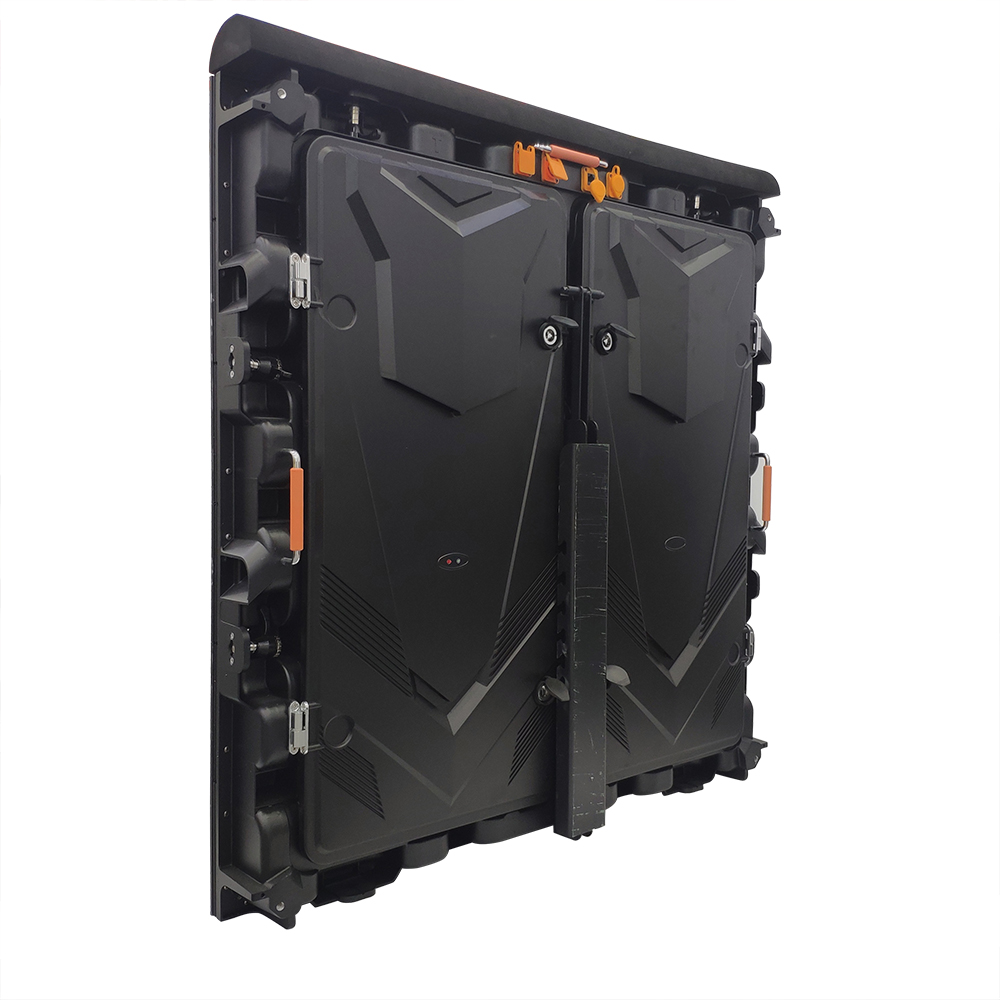

Top rubber pillow to protect players and audiences be hurt .
Emergency gate design for any unexpect case happen.

Offline Message
Specifications
JC Sports-Out JC-O10 JC-O12.5 JC-O16 JC-O12.5N
Pixel pitch(mm) 10 12.5 16 12.5
Pixel Density(dot/m2) 10000 6400 3906 6400
LED Type SMD 3535 SMD 3535 SMD 3535 SMD2727
Module Size(W x H x D)mm 300 x 300 300x300 256 x128 400x 300
Module resolution(W x H) 30 x 30 24x 24 16 x 8 32 x 24
Module Weight(Kg) 1.25 1.25 0.5 2.5
Power Consumption per Module(w) 60 60 23 84
Diver Mode(Scan) 1/2 1/2 static 1/2
Brightness(cd/m2) ≥5000 ≥4500 ≥5000 ≥4500
Grey Scale(bits) 16 16 16 16
Refresh Rate(Hz) ≥1,920 ≥1,920 ≥1,920 ≥1,920
Cabinet Size(W x H x D)mm 900 x 900 x 104 1024x 768 x104 960 x 800 x150 1000x 750 x100
Cabinet Weight(Kg/Cabinet) 48 48 48 75
Max Power Consumption(W/m2) 700 700 700 700
Average Power Consumption(W/m2) 210 210 210 210
View Angle(H°/V°) 140°/140° 140°/140° 140°/140° 140°/140°
Mini View Distance(m) 10 12 16 12
Operating Use Temperature(℃) -20℃~60℃
Storage Use Temperature(℃) -20℃~60℃
Input Voltage(V) 100~240V
Input Power Frequency(Hz) 50Hz~60Hz
Failure Rate <1/100,1000
Signal Input Format SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life Time(hrs) 100000
IP Level(front/rear) IP65/IP54
