JCfixed-outdoor Advantages:
Reliable quality assurance.
High brightness but with low consumption.

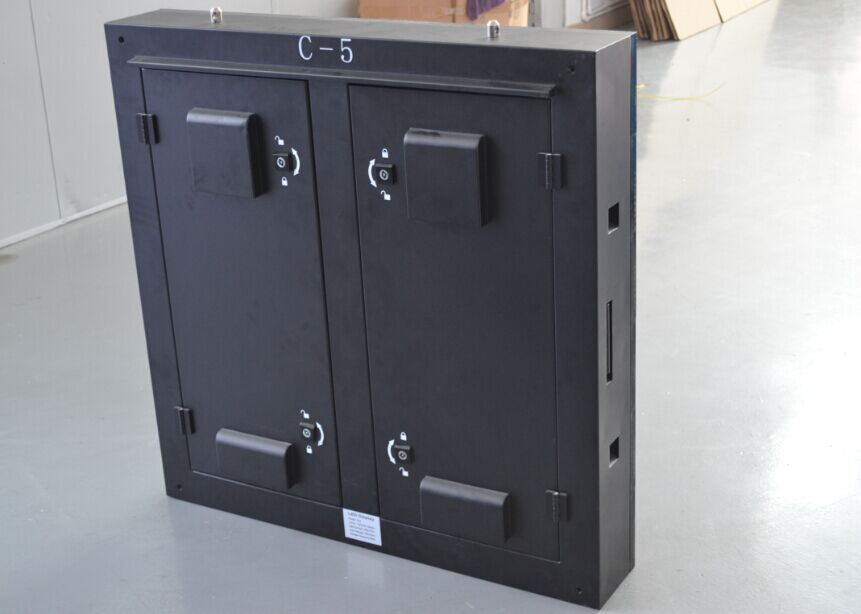

Anti-UV module mask to protect high temperature and salty area Sturdy cabinet ensures its super protection performance.
Offline Message
| JC-Outdoor | JCFix-O4 | JCFix-O5 | JCFix-O6 | JCFix-O8 | JCFix-O10 | JCFix-O16 |
|---|---|---|---|---|---|---|
| Pixel pitch(mm) | 4 | 5 | 6 | 8 | 10 | 16 |
| Pixel Density(dot/m2) | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 |
| LED Type | SMD 1921 | SMD 2727 | SMD 2727 | SMD 3535 | SMD 3535 | SMD 3535 |
| Module Size(W x H x D)mm | 256 x 128 | 320 x 160 | 192 x 192 | 256 x 128 | 320 x 160 | 256 x 256 |
| Module resolution(W x H) | 64 x 32 | 64 x 32 | 32 x 32 | 32 x 16 | 32 x 16 | 16 x16 |
| Module Weight(Kg) | 0.26 | 0.5 | 0.32 | 0.25 | 0.52 | 0.48 |
| Power Consumption per Module(w) | 25 | 39 | 28 | 25 | 38 | 48 |
| Diver Mode(Scan) | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 | Static |
| Brightness(cd/m2) | ≥5000 | ≥5000 | ≥5500 | ≥5500 | ≥7000 | ≥7000 |
| Grey Scale(bits) | 16 | 16 | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 |

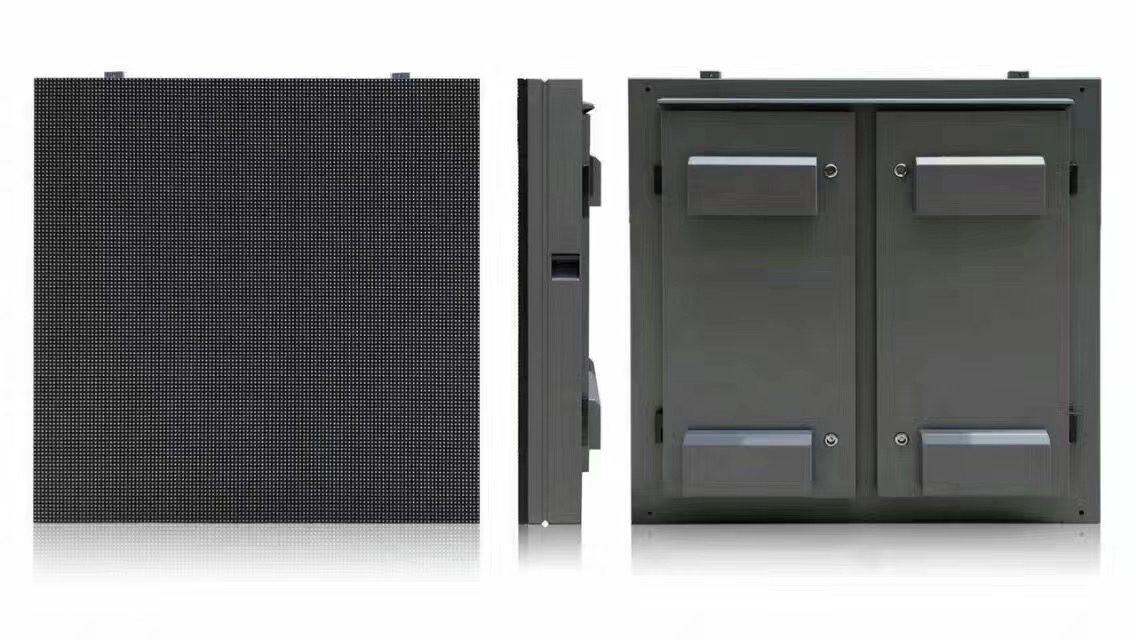

| Cabinet Size(W x H x D)mm | 768 x 768 x 170 | 960 x 960 x170 | 960 x 960 x170 | 1024 x 768 x170 | 960 x 960 x170 | 1024 x 768 x170 |
| Cabinet Weight(Kg/Cabinet) | 30 | 46 | 46 | 39 | 46 | 39 |
| Max Power Consumption(W/m2) | 900 | 900 | 900 | 900 | 900 | 900 |
| Average Power Consumption(W/m2) | 300 | 300 | 300 | 300 | 300 | 300 |
| View Angle(H°/V°) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Mini View Distance(m) | 4 | 5 | 6 | 8 | 10 | 16 |
| Operating Use Temperature(℃) | -10℃~40℃ | |||||
| Storage Use Temperature(℃) | -20℃~50℃ | |||||
| Input Voltage(V) | 100~240V | |||||
| Input Power Frequency(Hz) | 50Hz~60Hz | |||||
| Failure Rate | ＜1/100,1000 | |||||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | |||||
| Life Time(hrs) | 100000 | |||||
| IP Level(front/rear) |
IP65/IP56 |
|||||
Product features
High brightness, low power consumption, long service life, stable performance, less maintenance.
Cabinet size can be customized, flexible and changeable.
Installation is simple, easy to maintain, easy to use
Application range

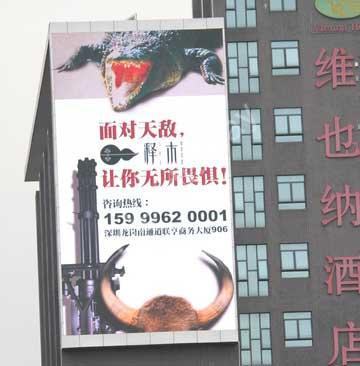

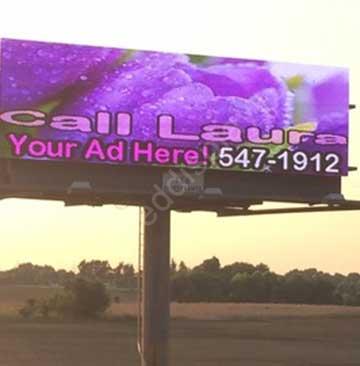

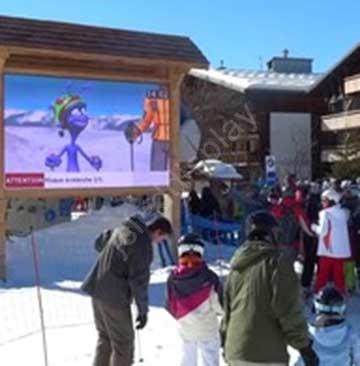

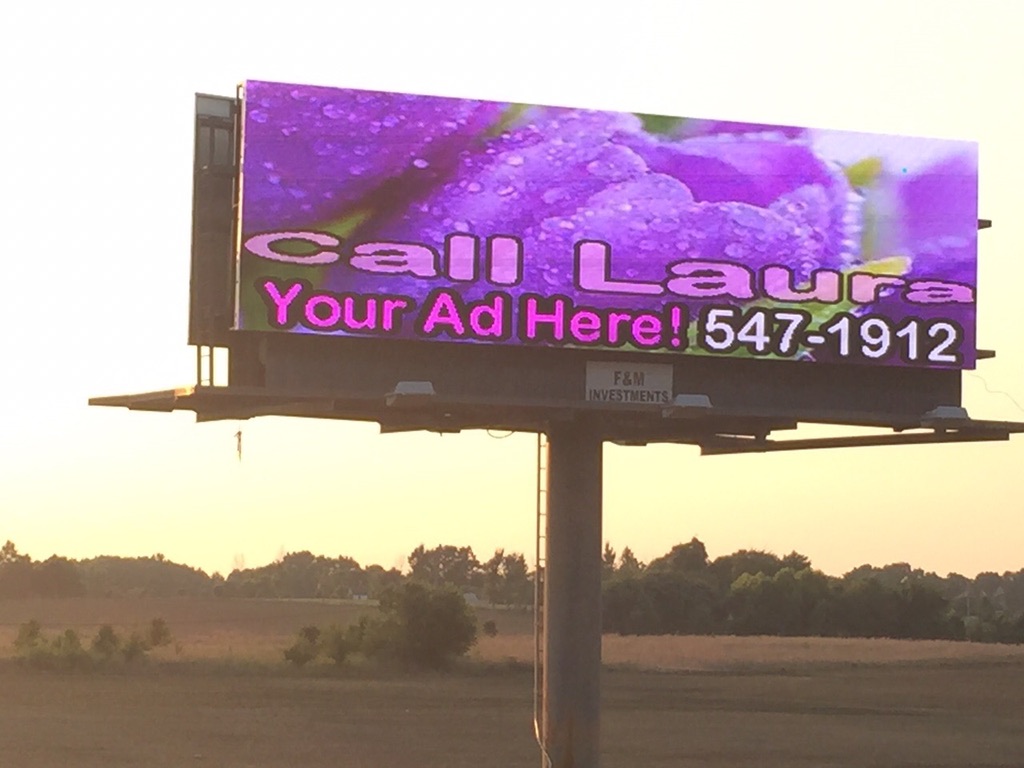

Widely used in large venues, stadiums, banks, post and telecommunications, government agencies, terminal, docks, stations, securities market and other market transactions, medical systems, power, and the exhibition hall a need for publicity, advertising, information release guidance and other places.
