JC LED Glass Display advantages :
Display ip65 ,good for waterproof , anti-rusted and anti-collision ;
More than 50% transparency ,seamless to join the window ;
Simple construction ,easy install and mantenance from front and back ;
Fix and rental for different application
Offline Message
| JC Glass | JC G-F3.9 | JC G-F7.8 | JC G-F5/10 | JC G-F10 |
|---|---|---|---|---|
| Pixel pitch(mm) | P3.9-P7.8 | P7.8 | P5.21-P10.42 | P10.42 |
| Pixel Density(dot/m2) | 32768 | 16384 | 18432 | 9216 |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Cabinet Size(W x H x D)mm | 1000(W)x500(H) | 1000(W)x500(H) | 1000(W)x500(H) | 1000(W)x500(H) |
| Cabinet resolution(W x H) | 256x64 | 128x64 | 192x48 | 96x48 |
| Cabinet Weight(Kg) | 7.5 | 7.5 | 7.5 | 7.5 |
| Material | Die casting | Die casting | Die casting | Die casting |
| Transparency | 50% | 50% | 50% | 50% |
| Diver Mode(Scan) | 1/8 | 1/8 | 1/4 | 1/2 |
| Brightness(cd/m2) | ≧4500 | ≧4500 | ≧4500 | ≧4500 |
| Grey Scale(bits) | 10 to 16 bit | 10 to 16 bit | 10 to 16 bit | 10 to 16 bit |
| Refresh Rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Max Power Consumption(W/m2) | 800 | 800 | 800 | 800 |
| Average Power Consumption(W/m2) | 230 | 230 | 230 | 230 |
| View Angle(H°/V°) | 160/160 | 160/160 | 160/160 | 160/160 |
| Mini View Distance(m) | 4 | 7 | 7 | 10 |
| Operating Use Temperature(℃) | -10℃~40℃ | |||
| Storage Use Temperature(℃) | -20℃~50℃ | |||
| Input Voltage(V) | 100~240V | |||
| Input Power Frequency(Hz) | 50Hz~60Hz | |||
| Failure Rate | ＜1/100,1000 | |||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | |||
| Life Time(hrs) | 100,000 | |||
| IP Level(front/rear) |
IP65 /IP65 |
|||
1.product Introduction
What is transparent led display?Transparent LED display is a LED display, which just like glasses to let light pass through.
It is an innovation of strip screen with high permeability, ultra-light features, an innovation on SMD manufacturing process, packaging and control system. With hollow structure design, eliminated components that blocking sight, the perspective effect is maximized.
Transparent led poster screen is a new branch product from the normal transparent led screen.With it’s small and light weight design to gain lots of populations on the market.
2.Product feature and application
Features:
High transparent effect
Small space occupation, light weight.
Easy maintenance and installations
Energy-saving & environment friendly
Plug and play,no need high technology request
Steel frame construction free, installation and maintenance cost saving.
Applications:

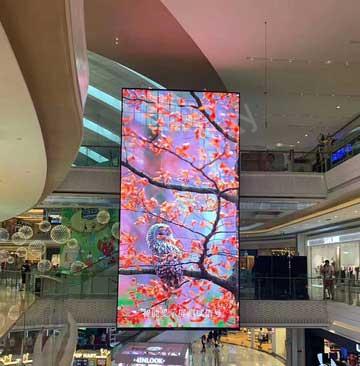

Hotel, chain store, shopping mall, exhibition center, airport, metro station, automobile 4S shop, jewelry store, bank etc.
3.Production details

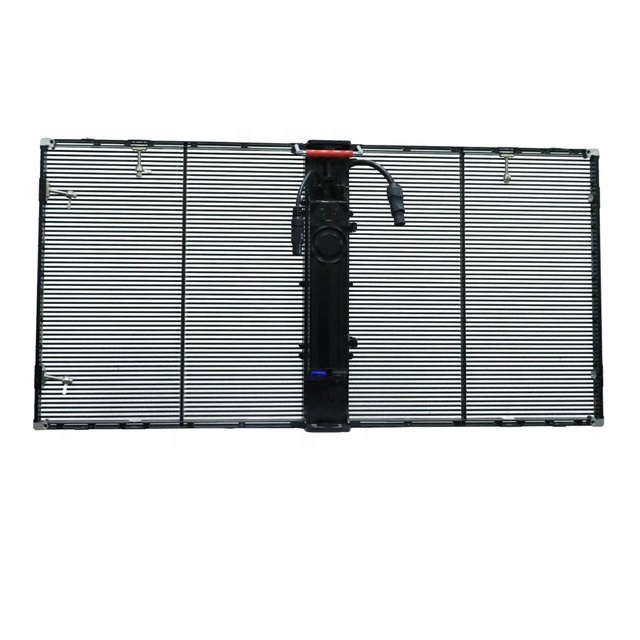

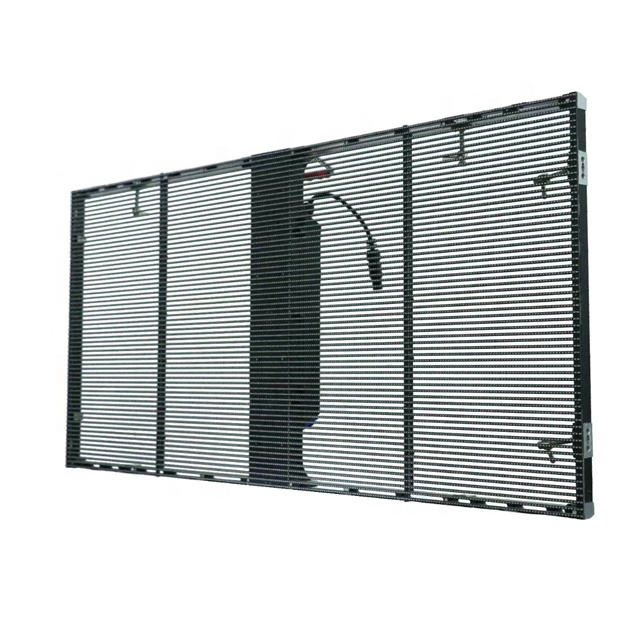

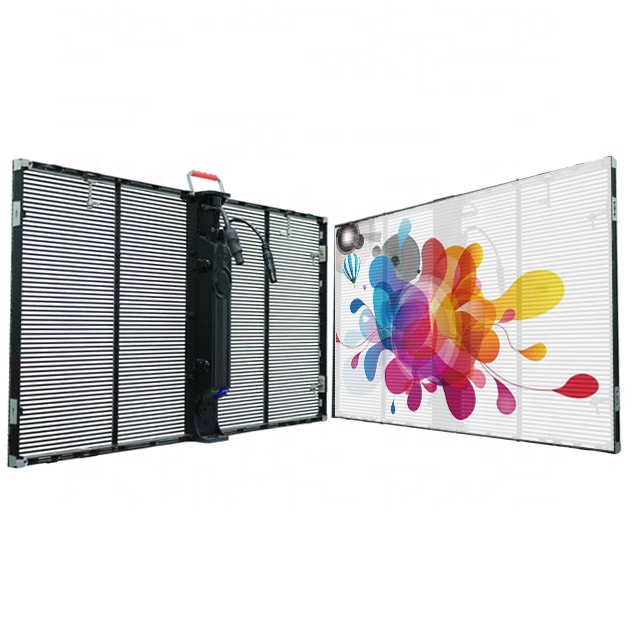

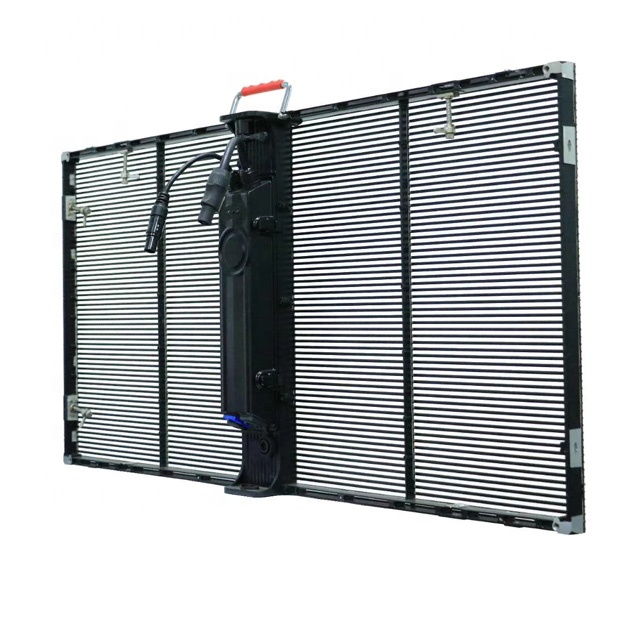

A. Independent and simple cabinet design for easy installation and convenient transportation

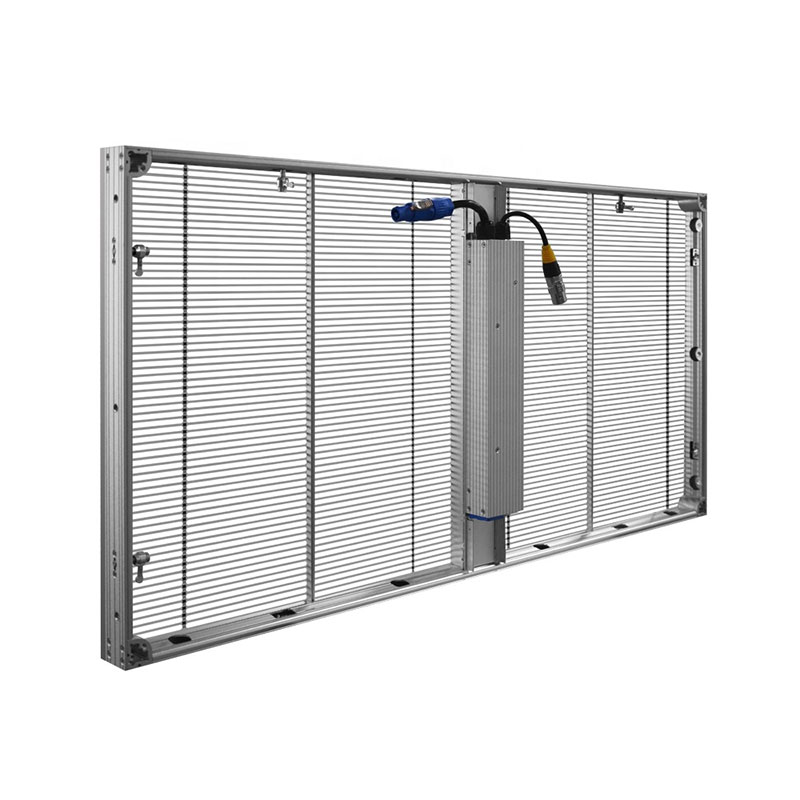

B. Die casting aluminum cabinet with supper light weight,save shipping and labor cost.

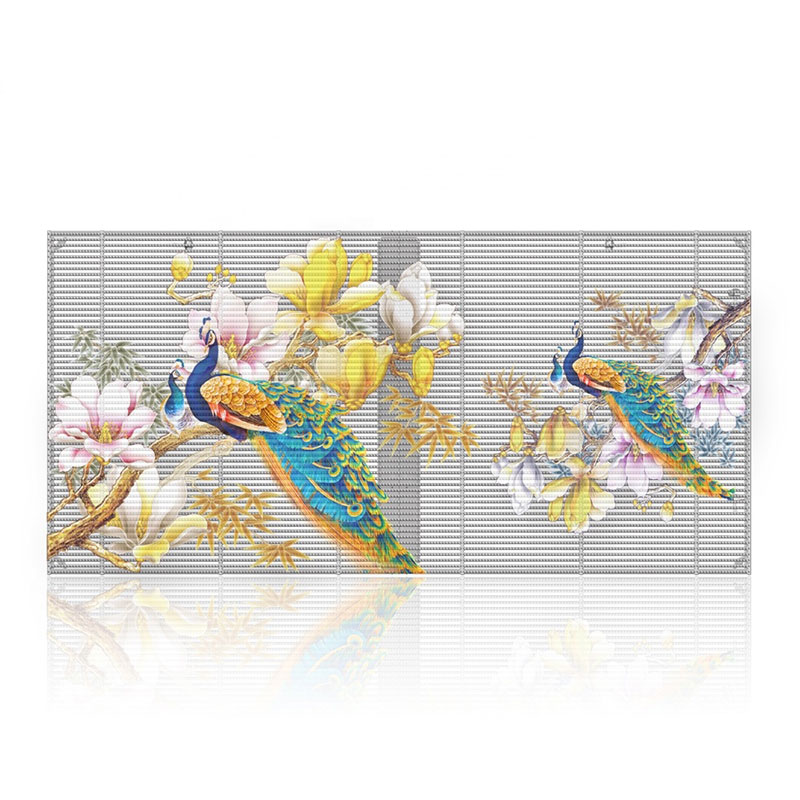

C. Slim skeleton led strip curtain layout to create clean and clear displays.

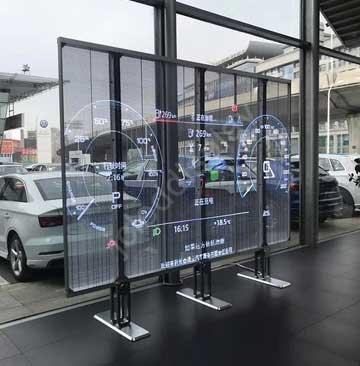

D. Available in various installation ways, such as floor standing, hanging.
