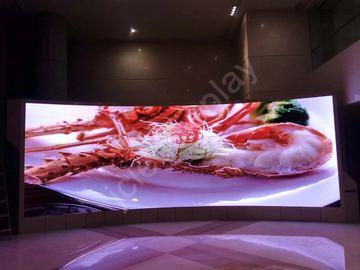

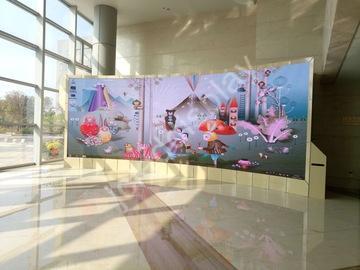

Indoor fixed installation

JCFixed-indoor Advantages

Less weight with 5.5kg per cabinet

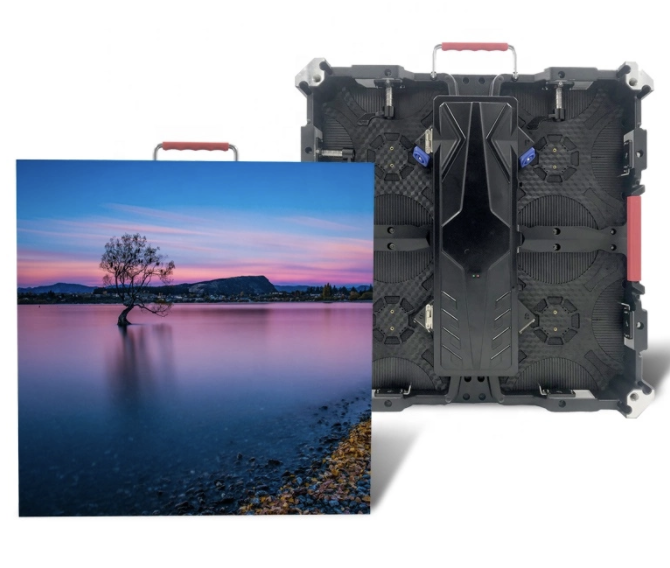

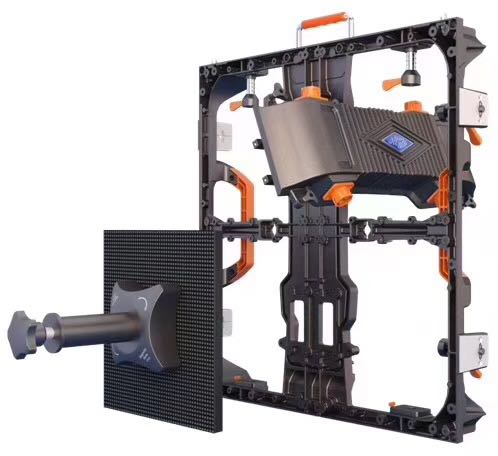

Front and back maintenance

Intellgent modules for any area change

Multi pixel pitch with one cabinet

High contrast and unifmority

Offline Message
Specifications
JCfix-in JCfix-in-1.53 JCfix-in-1.86 JCfix-in-2 JCfix-in-2.5 JCfix-in-3
Pixel pitch(mm) 1.53 1.86 2 2.5 3
Pixel Density(dot/m2) 427716 289247 250000 160000 111111
LED Type SMD1212 SMD1515 SMD1515 SMD2020 SMD2020
Module Size(W x H x D)mm 320x160mm 320x160mm 320x160mm 320x160mm 192x192mm
Module resolution(W x H) 209x105 172x86 160x80 128x64 64x64
Module Weight(Kg) 0.6kg 0.6kg 0.6kg 0.6kg 0.6kg
Power Consumption per Module(w) 35 33 30 29 29
Diver Mode(Scan) 1/52 1/43 1/40 1/32 1/32
Brightness(cd/m2) 600~800nit 900nit 900nit 900nit 1000nit
Grey Scale 16384 16384 16384 16384 16384
Refresh Rate(Hz) ≥2880Hz ≥2880Hz ≥2880Hz ≥2880Hz ≥2880Hz
Cabinet Size(W x H x D)mm 640x480x63mm 640x480x63mm 640x480x63mm 640x480x63mm 576x576x63mm
Cabinet Weight(Kg/Cabinet) 5.6Kg 5.6Kg 5.6Kg 5.6Kg 5.6Kg
Max Power Consumption(W/m2) 550 565 550 520 520
Average Power Consumption(W/m2) 250 200 180 170 170
View Angle(H°/V°) 160/160 160/160 160/160 160/160 160/160
Mini View Distance(m) 1 1 2 2 3
Operating Use Temperature(℃) -10℃~40℃
Storage Use Temperature(℃) -20℃~50℃
Input Voltage(V) 100~240V
Input Power Frequency(Hz) 50Hz~60Hz
Failure Rate <1/100,1000
Signal Input Format SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life Time(hrs) 100,000
IP Level(front/rear) IP30 /IP30
