JC Sports advantages

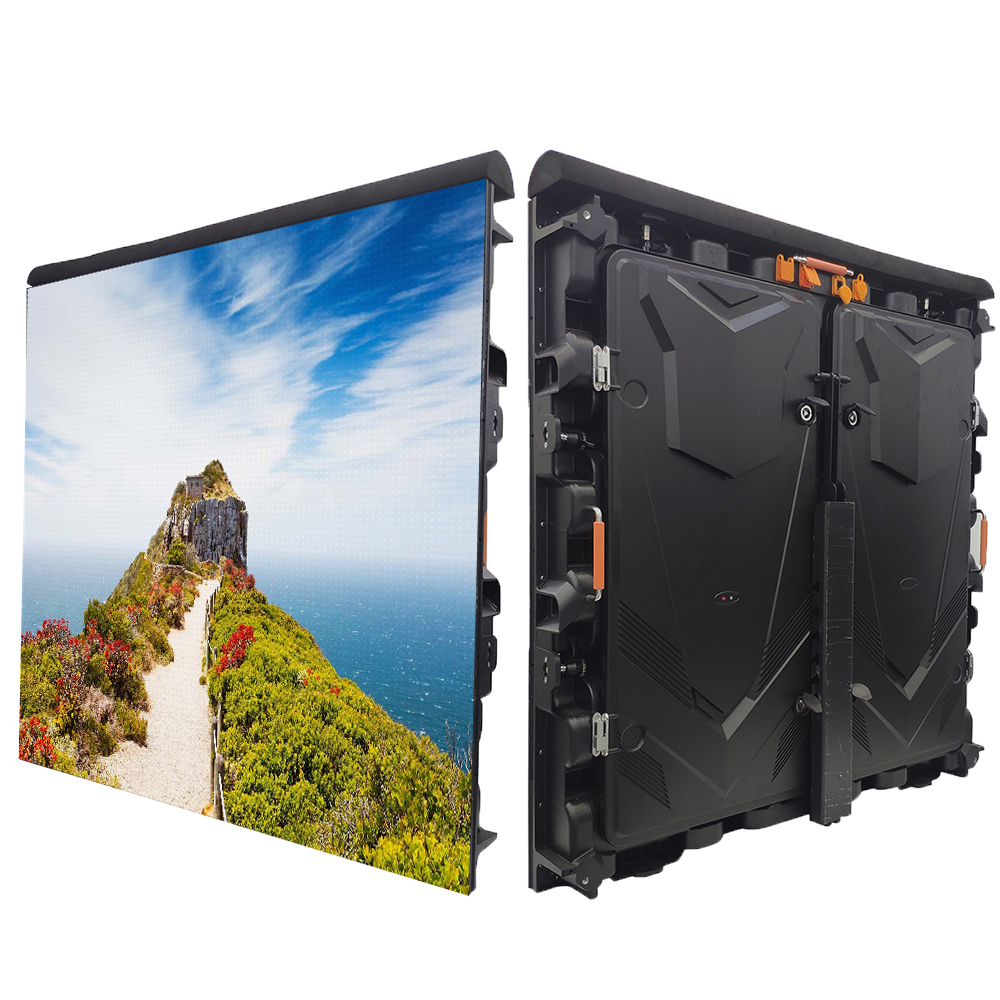

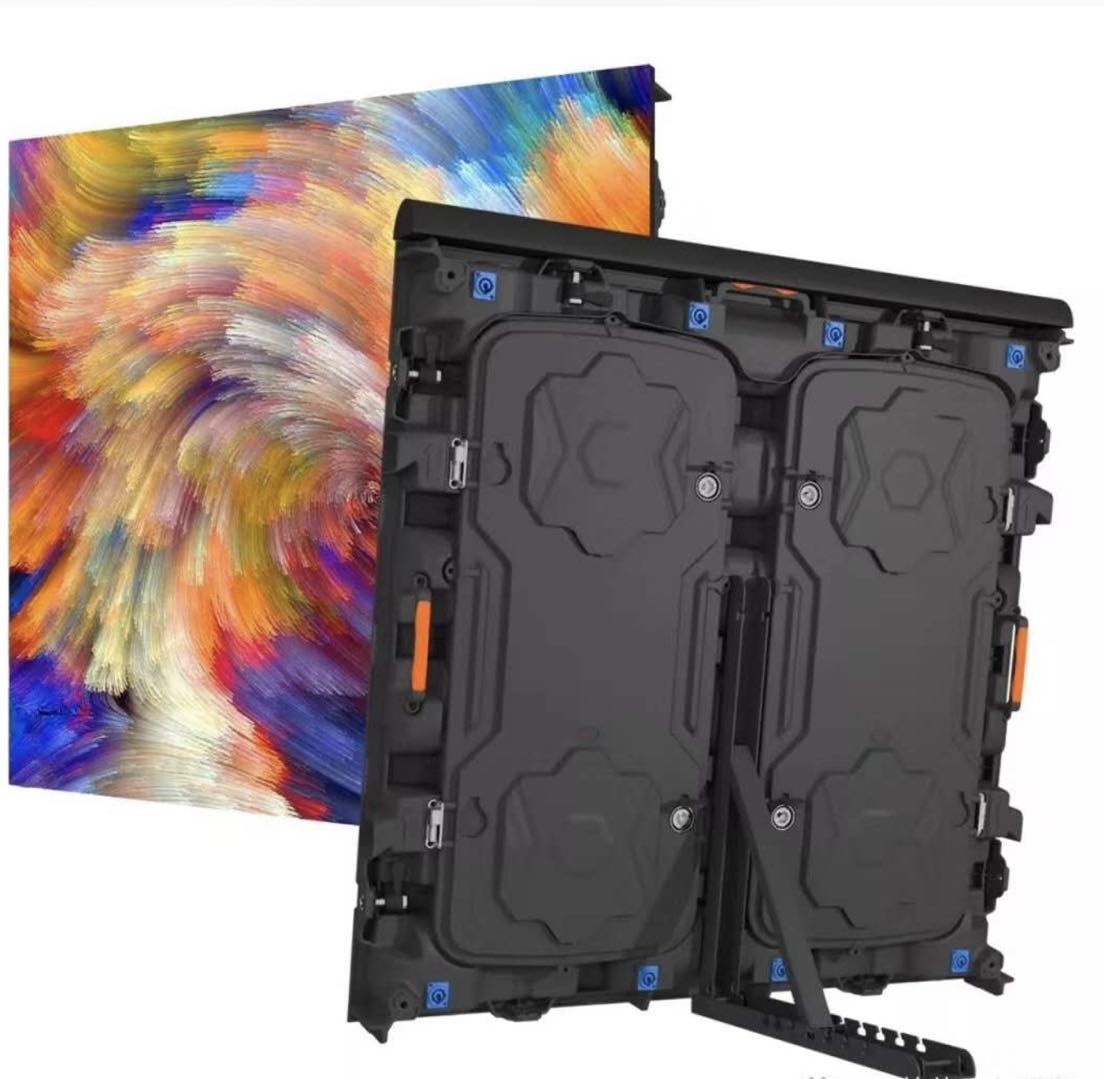

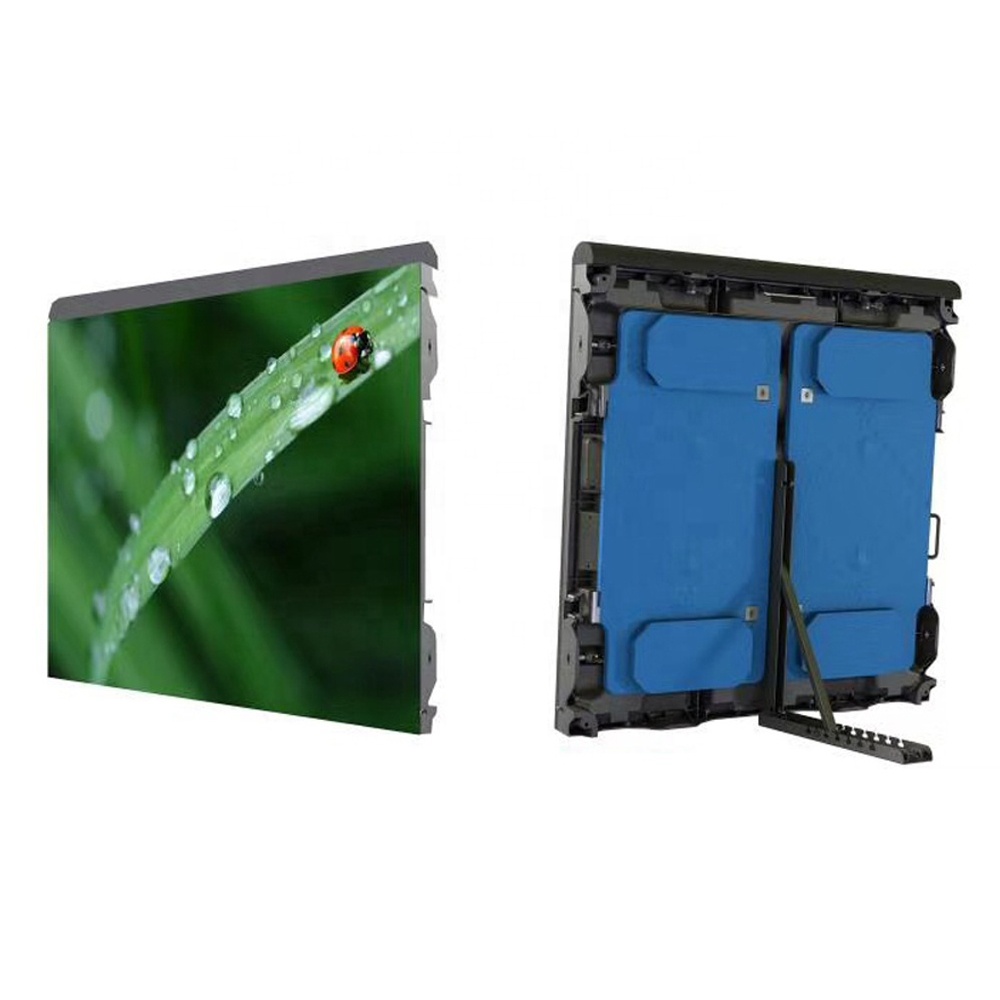

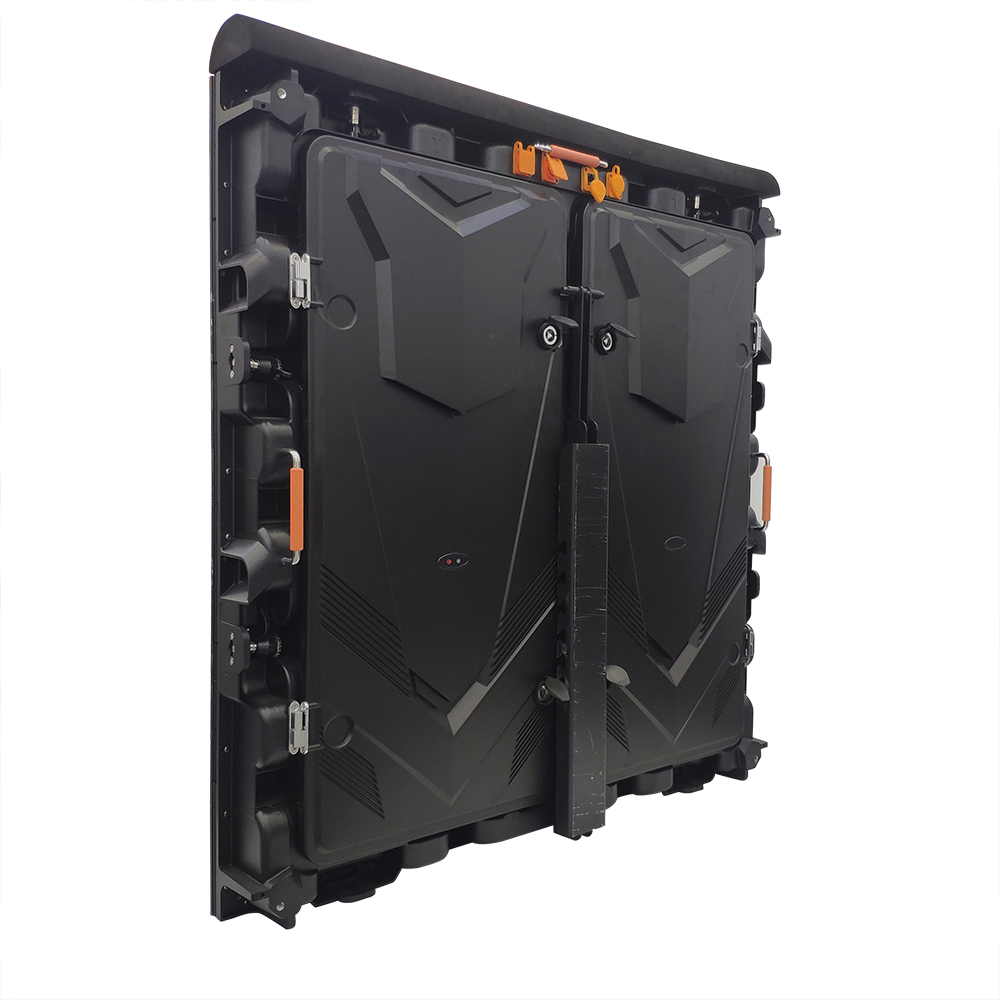

Slim and less weight cabinet design Easy assemble and disassemble for some sport games Signal and power backup avoid any image loss during living playing; Rubber louvers and rubber padding guarantees safety of players and audiences; Rotate leg design could join the cabinet in the same level or combine together;
Offline Message| JC Sports-In | JC-In6 | JC-In8 | JC-In10 | JC-6.25N |
|---|---|---|---|---|
| Pixel pitch(mm) | 6 | 8 | 10 | 6.25 |
| Pixel Density(dot/m2) | 27777 | 15626 | 10000 | 25600 |
| LED Type | SMD 3528 | SMD 3528 | SMD 3528 | SMD 2121 |
| Module Size(W x H x D)mm | 192 x 192 | 256 x 128 | 320 x 160 | 250 x 250 |
| Module resolution(W x H) | 32 x 32 | 32x 16 | 32 x 16 | 40 x 40 |
| Module Weight(Kg) | 0.26 | 0.3 | 0.32 | 0.35 |
| Power Consumption per Module(w) | 26 | 23 | 36 | 44 |
| Diver Mode(Scan) | 1/8 | 1/8 | 1/4 | 1/8 |
| Brightness(cd/m2) | ≥1200 | ≥1200 | ≥1000 | ≥1000 |
| Grey Scale(bits) | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 |
| Cabinet Size(W x H x D)mm | 960 x 960 x 150 | 1024x 768 x150 | 960 x 800 x150 | 1000x 750 x100 |
| Cabinet Weight(Kg/Cabinet) | 42 | 36 | 35 | 30 |
| Max Power Consumption(W/m2) | 700 | 700 | 700 | 700 |
| Average Power Consumption(W/m2) | 210 | 210 | 210 | 210 |
| View Angle(H°/V°) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Mini View Distance(m) | 6 | 8 | 10 | 6 |
| Operating Use Temperature(℃) | -20℃~60℃ | |||
| Storage Use Temperature(℃) | -20℃~60℃ | |||
| Input Voltage(V) | 100~240V | |||
| Input Power Frequency(Hz) | 50Hz~60Hz | |||
| Failure Rate | ＜1/100,1000 | |||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | |||
| Life Time(hrs) | 100000 | |||
| IP Level(front/rear) | IP43/IP43 | |||
