Taxi Topper Sign

JC TTS advantages

Super slim & less weight design

Wireless module board connection

Easy maintenance

Low power consumption

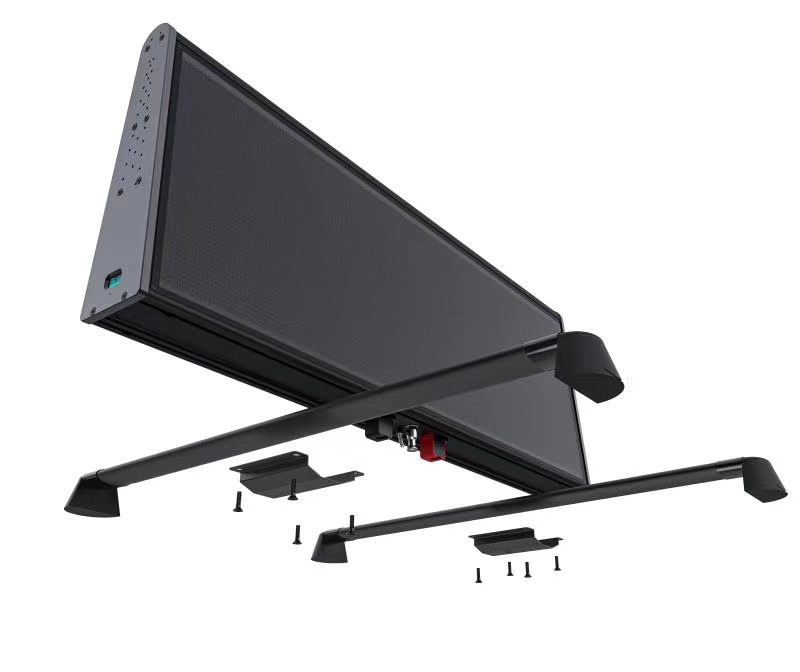

Multi control and installation ways

Offline Message
Specifications
JC TTS JC TTS-2.5 JC TTS-3.33 JC TTS-5
Pixel pitch(mm) 2.5 3.33 5
Pixel Density(dot/m2) 160000 90180 40000
LED Type SMD2121(1921) SMD1921 SMD1921
Cabinet Size(W x H x D)mm 1102 x 405 x 135
Cabinet resolution(W x H) 2sides ,each side:384x128 2sides ,each side:288x96 2sides ,each side:192x64
Cabinet Weight(Kg) 17 16 16
Diver Mode(Scan) 1/16 1/12 1/8
Brightness(cd/m2) 1500(4500) 4500 4500
Grey Scale(bits) 16 16 16
Refresh Rate(Hz) ≥960 ≥960 ≥960
Max Power Consumption(W/set) 380 380 380
Average Power Consumption(W/set) 110 110 110
View Angle(H°/V°) 160/160 160/160 160/160
Mini View Distance(m) 2 3 5
Operating Use Temperature(℃) -10℃~40℃
Storage Use Temperature(℃) -20℃~50℃
Input Voltage(V) 100~240V
Input Power Frequency(Hz) 50Hz~60Hz
Failure Rate <1/100,1000
Signal Input Format SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life Time(hrs) 100,000
IP Level(front/rear) IP65 /IP65
