| JC LED格栅屏 | JC-C15.625 | JC-C31.25-15.625 | JC-C31.25-31.25 |
|
|---|---|---|---|---|
| 点间距(mm) | P15.625 | P731.25-15.625 | P31.25-31.26 |
|
| 密度(dot/m2) | 4096 | 2048 | 1024 |
|
| LED 型号 | DIP346 | DIP346 | DIP346 | |

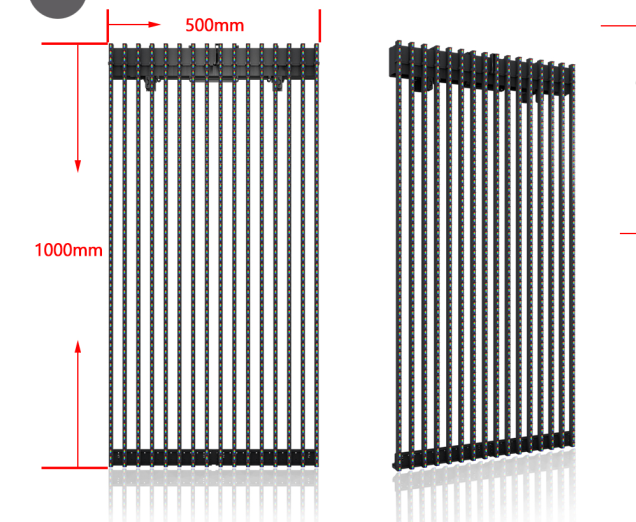

| 单元板尺寸(W x H )mm | 500(W)x1000(H) | 500(W)x1000(H) |
500(W)x1000(H) |
|
| 单元板分辨率(W x H) | 32x64 | 16x64 | 16x31 | |
| 单元板重量(Kg) | 9 | 8 | 7 | |
| 材质 | Die casting | Die casting | Die casting |
|
| 通透率 | 80% | 80% | 80% |
|
| 驱动方式(扫) | static | static | static | |
| 亮度(cd/m2) | ≧8500 | ≧7500 | ≧6000 | |
| 灰度等级(bits) | 10 to 16 bit | 10 to 16 bit | 10 to 16 bit |
|
| 刷新率(Hz) | ≥1920 | ≥1920 | ≥1920 | |
| 最大功耗(W/m2) | 480 | 400 | 350 |
|
| 平均功耗(W/m2) | 145 | 125 | 105 |
|
| 观看角度(H°/V°) | 110/60 | 110/60 | 110/60 |
|
| 最小观看距离(m) | 16 | 32 | 32 |
|
| 运行温度(℃) | -10℃~40℃ | |||
| 储存温度(℃) | -20℃~60℃ | |||
| 输入电压(V) | 100~240V | |||
| 输入电压频率(Hz) | 50Hz~60Hz | |||
| 死灯率 | ＜1/100,1000 | |||
| 信号输入格式 | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | |||
| 寿命(hrs) | 100,000 | |||
| IP 等级(front/rear) | IP68 | |||
